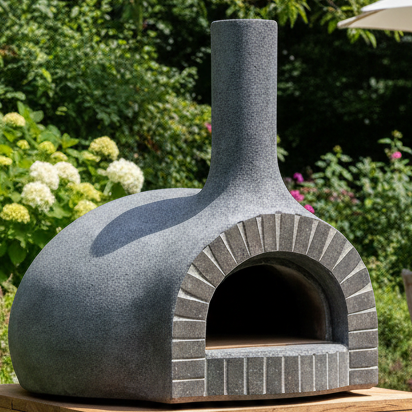

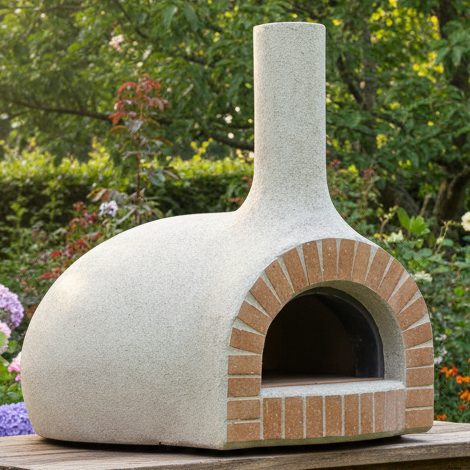

Kiwi Pizza Oven Kitset
Kiwi Pizza Oven Kitset
A permanent wood-fired oven you can build yourself — without bricklaying or cutting.
Major oven components, insulation and finishing materials are included in the kitset.
Couldn't load pickup availability
Current NZ allocation: 18 kitsets available
We manufacture in small batches and ship to New Zealand in limited production runs. The current shipment is available from Christchurch while stock lasts.
- Christchurch pickup
- 30-Day Return Policy
- NZ-wide Depot Freight
A complete wood fired oven, in kitset form
The kitset includes the main oven components, insulation, finishing materials, hardware and practical accessories needed for the standard build and curing process.
Why this kitset is different
-
Same core oven. You do the assembly.
You’re not buying a lightweight or simplified DIY oven. The kit uses the same core refractory components and insulation as our fully assembled oven — you complete the assembly and finish.
-
Save around $2,500
By doing the assembly yourself, you save around $2,500 compared with our fully assembled oven. The saving comes from your own work, not from lower-grade core components.
-
Engineered for assembly, not built from scratch
No bricklaying, no brick cutting and no specialist masonry skills. The difficult engineering is already done, with pre-formed components, supplied materials and step-by-step guidance.
Made by us, in small batches
We manufacture the major cast components ourselves rather than simply sourcing a finished oven. Each refractory dome, self supporting base, entrance, chimney section and outer shell is cast in moulds, finished and prepared by us before becoming part of the kitset.
What’s included in the kitset
Oven components
- Precast self supporting oven base
- Six section refractory inner dome
- Precast refractory oven entrance
- Precast lightweight chimney section
- Precast outer shell
- Eight piece refractory cooking floor
Insulation and thermal materials
- 2.4 metres of ceramic fibre insulation blanket
- 75 litres of lightweight insulation mortar mix
- High temperature fire cement and sealant
Finishing and reinforcement materials
- Polymer modified anti crack mortar
- Flexible cement based adhesive
- High strength exterior render
- Reinforcing mesh
Stainless steel components
- Stainless steel oven door
- Stainless steel rain cap with bird screen
Build and curing accessories
- Under oven flexible pads
- Infrared thermometer for monitoring temperature during curing and cooking
Key specifications
Internal baking area: 900 mm
External dimensions: 1100 × 1165 × 1095 mm
Door opening: approximately 450 × 250 mm
Recommended stand height: 850 mm
Completed oven weight: approximately 600 kg
The oven has its own supporting base, so it does not require a concrete benchtop. It needs a stable, level stand or frame capable of supporting the completed oven.
Engineered to be built by you
The main oven components are prefabricated and fit together in a clear sequence. There is no bricklaying or cutting required for the standard build.
Allow around 10 to 15 hours of hands on assembly time, spread over a few days so the mortars, adhesive and finishing materials can set properly between stages.
What you need to build it
Basic DIY experience and common tools are enough for the standard build. There is no bricklaying or cutting required.

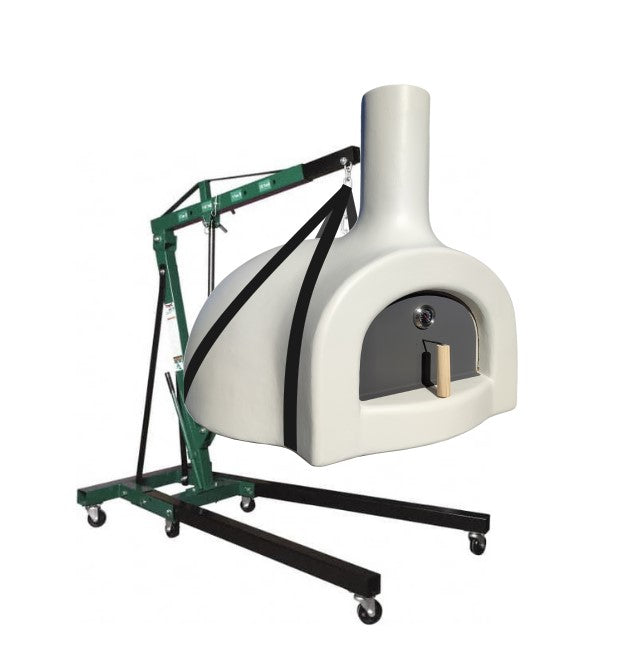

Some components are heavy, so you will need another person to help with lifting and positioning. A full tool list is provided with the assembly instructions.
One firing. Up to 12 hours of useful cooking.
Start with pizza at the highest heat, then keep cooking as the temperature gradually falls.
Use the retained heat for bread, roasting and slow cooking later on, without starting again from a cold oven.

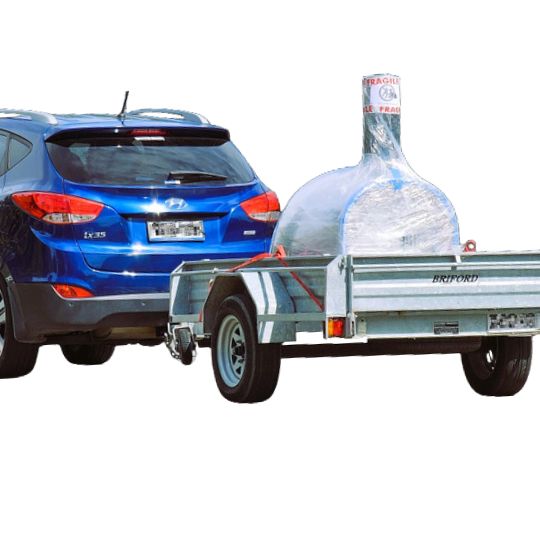

Getting your kitset home
Collect your kitset free from our New Brighton warehouse, arrange standard urban Christchurch delivery for $150, or have it freighted to a StraitNZ depot or agent elsewhere in New Zealand. Current depot freight prices are shown on our Delivery page. Standard urban home delivery outside Christchurch can be arranged for $150 additional to the depot freight price.
Ready to build yours?
The Kiwi Pizza Oven kitset is $4,499 NZD including GST, plus freight.
